This document defines a set of Objects to be used in conjunction with the Lightweight M2M enabler in order to interact with event logs within a device.
The LwM2M object provides a standardised interface to query logs within a device. The actual implementation of the underlying log functionality is outside the scope of this TS.
[3GPP-TS_23.203] | "3GPP TS 23.203 "Policy and charging control architecture", URL:http://www.3gpp.org |
[RFC2119] | "Key words for use in RFCs to Indicate Requirement Levels", S. Bradner, March 1997, URL:http://www.ietf.org/rfc/rfc2119.txt |
[3GPP-TS_21.905] | 3GPP TS "3GPP Vocabulary", URL:http://www.3gpp.org |
[OMADICT] | "Dictionary for OMA Specifications", Open Mobile Alliance, OMA-ORG-Dictionary-V2_9, URL:http://www.openmobilealliance.org/ |
The key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this document are to be interpreted as described in [RFC2119].
All sections and appendixes, except "Scope" and "Introduction", are normative, unless they are explicitly indicated to be informative.
LTE | WB-E-UTRAN as defined in [3GPP-TS_23.401]. |
NB-IoT | NarrowBand IoT is a subset of E-UTRAN. |
See also [3GPP-TS_21.905] for 3GPP-specific definitions.
AS | Application Server |
See also [3GPP-TS_21.905] for 3GPP-specific abbreviations.
This specification enables the transfer of log information from a device to an LwM2M server.
V1.0 of the specification covers:

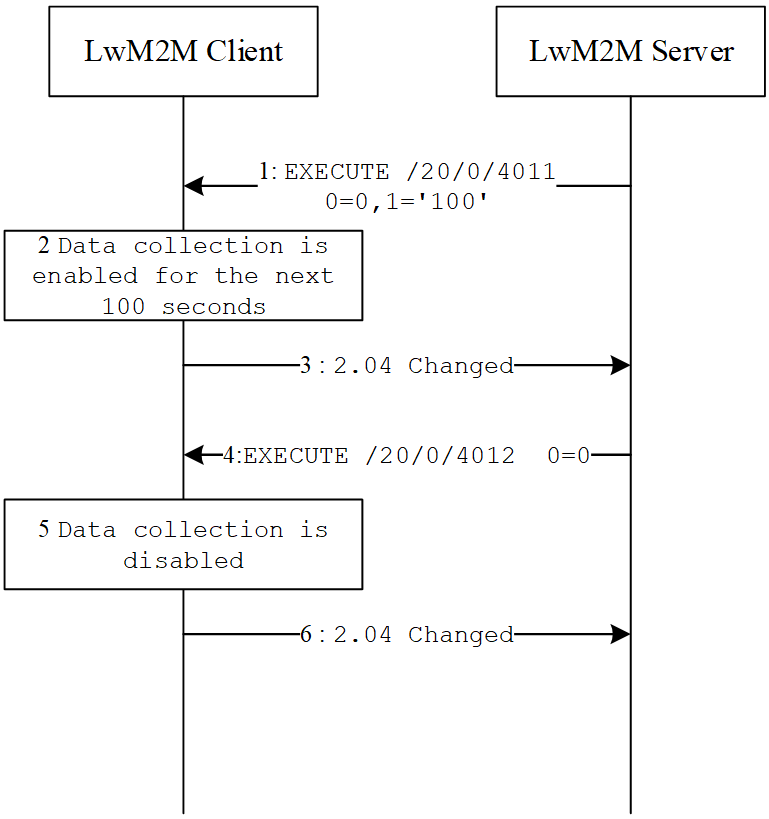

This uses the LogStart/Stop resource, 4011/4012

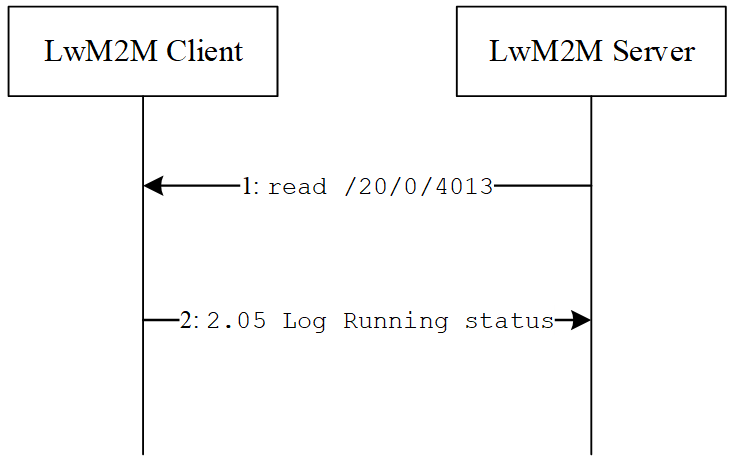

This uses the LogStatus resource 4013. The LogStatus could be reported either by a READ from the LwM2M Server or NOTIFICATION from the LwM2M Client. This use case introduces the READ for example.

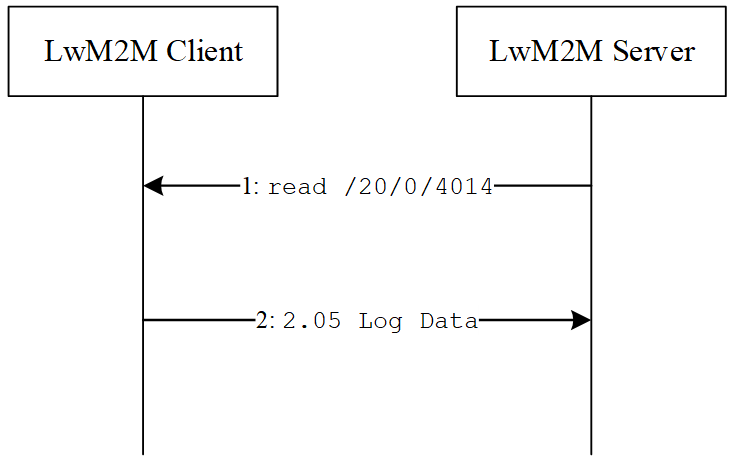

This uses the LogData resource, 4014

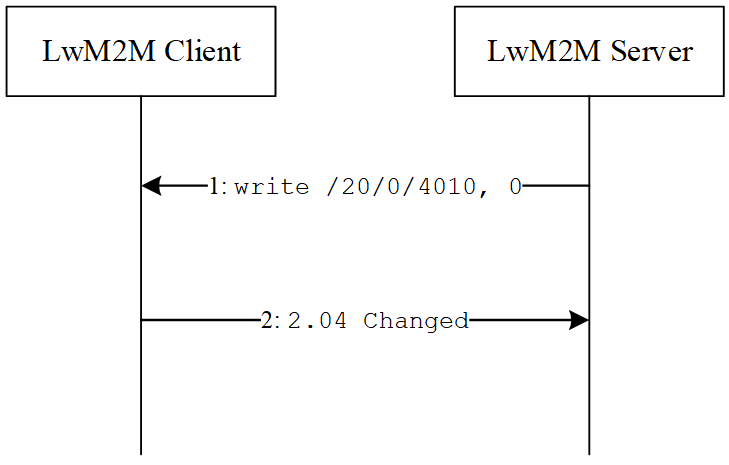

This uses the LogClass resource, 4010
Description
The Event Log Object is a multiple Instances Object defined for logging data in a straightforward and generic way. The Resources of that Object are based on the OMA LwM2M set of reusable Resources dedicated to logging event activity.
Object definition
Name | Object ID | Object Version | LWM2M Version |
Event Log | 20 | 2.0 | 1.0 |
Object URN | Instances | Mandatory | |
urn:oma:lwm2m:oma:20:2.0 | Multiple | Optional |
Resource definitions
ID | Name | Operations | Instances | Mandatory | Type | Range or Enumeration | Units | Description |
---|---|---|---|---|---|---|---|---|
4010 | LogClass | RW | Single | Optional | Integer | 255 | Define the Log Event Class: 0: generic (default) 1: system 2: security 3: event 4: trace 5: panic 6: charging [7-99]: reserved [100-255]: vendor specific | |
4011 | LogStart | E | Single | Optional | Actions: a) Start data collection(DC) b) LogStatus is set to 0 (running) c) DC is emptied (default) or extended according arg'0' value Arguments definitions are described in the table below. | |||
4012 | LogStop | E | Single | Optional | Actions: a) Stop data collection(DC) b) 1st LSB of LogStatus is set to "1"(stopped) c) DC is kept (default) or emptied according arg'0' value Arguments definitions are described in the table below. | |||
4013 | LogStatus | R | Single | Optional | Integer | 8-Bits | Data Collection process status: Each bit of this Resource Instance value defines specific status: 1st LSB 0=running, 1=stopped 2nd LSB 1=LogData contains Valid Data 0=LogData doesn't contain Valid Data 3rd LSB 1=Error occurred during Data Collection 0=No error [4th -7th ] LSB:reserved 8th LSB: vendor specific. | |
4014 | LogData | R | Single | Mandatory | Opaque | Read Access on that Resource returns the Data Collection associated to the current Object Instance. | ||
4015 | LogDataFormat | RW | Single | Optional | Integer | 255 | when set by the Server, this Resource indicates to the Client, what is the Server preferred data format to use when the LogData Resource is returned . when retrieved by the Server, this Resource indicates which specific data format is used when the LogData Resource is returned to the Server 0 or Resource not present : no specific data format (sequence of bytes) 1 : OMA-LwM2M TLV format 2 : OMA-LwM2M JSON format 3: OMA-LwM2M CBOR format [4..99] reserved [100..255] vendor specific data format |

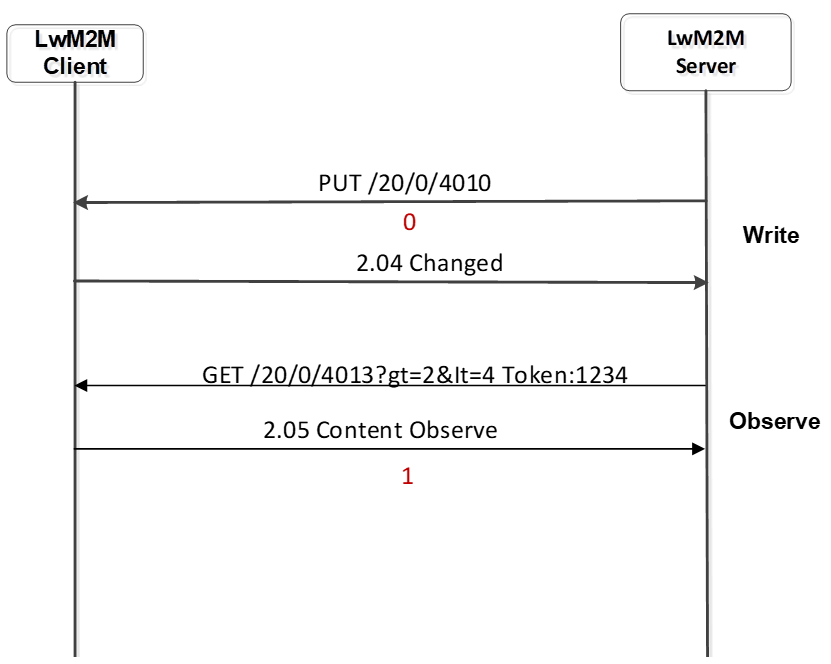

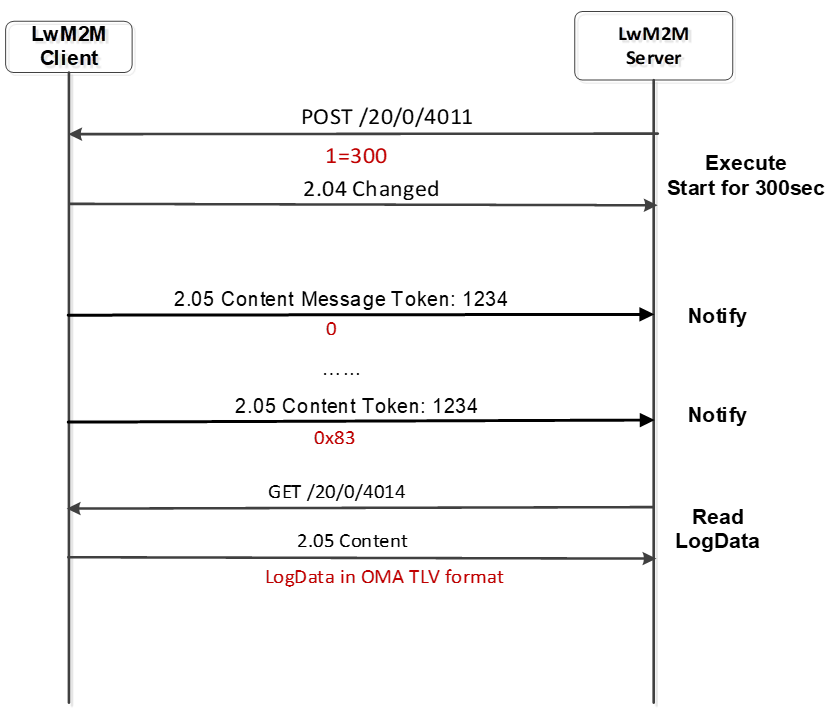

Active phase :
The Data Collection process is started with a period of 5 minutes (300 sec)
Some LogStatus notification take place for LwM2M Server Analysis
When Data Collection logging ends (period expires), the LwM2M Server can retrieve the LogData information (the data format is pre-configured between the Client and the Server)
Reference | Date | Description |
---|---|---|
OMA-TS-LwM2M_EventLog-V1_0-20180615-A | 15 Jun 2018 | Status changed to Approved by DM Doc Ref # OMA-DM&SE-2018-0060-INP_LWM2M_EventLog_V1_0_ERP_for_final_Approval |
OMA-TS-LWM2M_EventLog-V1_0_1-20200616-A | 16 Jun 2020 | Status changed to Approved by DMSE WG DMSE WG Ref # OMA-DM&SE-2020-0020-INP_LwM2M_EventLog_V1_0_1_ERP_for_Final_Approval |
OMA-TS-LWM2M_EventLog-V2_0-20230131-A | 31 Jan 2023 | Status changed to Approved by DMSE WG on 31 Jan 2023 |
Object name | Object ID | Object Instance ID |
---|---|---|
Event Log Object | 20 | 0 |
Resource Name | Resource ID | Resource Instance ID | Value | Notes |
---|---|---|---|---|
LogClass | 4010 | 0 | Generic log. | |
LogStatus | 4013 | 3 | The log status is stopped and LogData contains Valid Data | |
LogDataFormat | 4015 | 1 | OMA-LwM2M TLV format | |
LogData | 4014 | 61-7C-E3-01-C1-11-00-00-05-00-60-18-18-18-0C-00-01-41-06-00-02-00-40-0C-00-00-00-00 | 4545> 2017/8/1 0:46:37.803 - NAS_DBG_TIMER: (00:00:31.685729): LAYER_NAS => LAYER_NAS: action: (TIMER_STOP), prim_id: (EMM_T3410_TIMER_EXPIRY_MSG), duration: 0x00 (0) |
